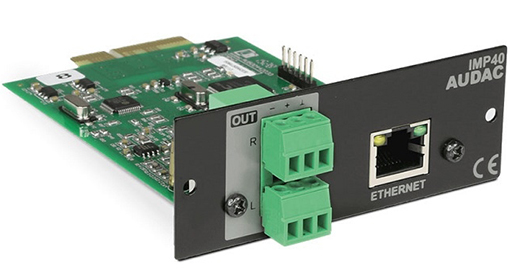

audac imp40 internet radio player module for xmp44
* wired LAN connection (no wifi)
Internal Reference:
IMP40
Beschrijving:
The IMP40 is a professional internet radio player featuring SourceCon™ modular technology.
° Balanced stereo line output
° Works with any SourceCon™ enabled device
° Preferential station storage
° Linum™ technology
Specifications
| Brand | Audac |
| Color | Grey |
| Dante | No |
| RS232 | No |
IMP40 – SourceCon™ internet audio player module
Highlights
- Works with any SourceCon™ enabled device
- Preferential station storage
- Linum™ technology
- vTuner database sync (30,000+ Channels)
- Custom audio stream selection
- MP3, WMA & AAC radio station support
- USB Media player backup (connection interruption)
- Balanced stereo line output
Description
The IMP40 is a professional internet radio player featuring SourceCon™ modular technology. This unique technology guarantees true plug & play implementation to any compatible device. When inserted into a supporting slot, the module is instantly installed, discovered and ready for operation without requiring any additional internal wiring or complex configuration. The IMP40 features the unique Linum™ technology which eliminates any unwanted behaviour such as sudden channel hopping or music stops. When the connection is interrupted, automatic switching to inserted media carriers (USB drives) avoids unpleasant silences in background music applications. The audio stream will be automatically and seamlessly restored afterwards. It synchronizes with the vTuner database which contains over 30.000 channels, allowing selection on different criteria such as genre, location, and language, ... while custom streams can also be added to a preference list of up to 100 entries. The input connection is implemented by an RJ45 type connector with indicator LEDs on its panel, allowing connection to any Ethernet network. The balanced stereo line output is connected through two 3-pin terminal block connections.
Applications
- Houses of worship
- Clubs
- Retail
System specifications
| Property | Value |
|---|---|
| Connection | SourceCon™ interface card slot |
| Inputs | RJ45 (Ethernet) |
| Compatible media / Playback | USB memory |
| Compatible media / Playback | USB HDD |
| Compatible filesystems / Playback | FAT16 |
| Compatible filesystems / Playback | FAT32 |
| Outputs / Type | Balanced stereo line outputs |
| Outputs / Level | +8 dB ~ -92 dB |
| Frequency / Response (± 3 dB) | 20 Hz - 20 kHz |
| Crosstalk (@ 1 kHz) | 80 dB |
| THD+N (@ 1 kHz) | |
| Power / Consumption | 1.5 W |
| Supported filetypes / Streaming | MP3 |
| Supported filetypes / Streaming | WMA |
| Supported filetypes / Streaming | AAC |
| Supported filetypes / Playback | MP3 |
Product Features
| Property | Value |
|---|---|
| Dimensions | 87 x 34.5 x 114 mm (W x H x D) |
| Weight | 0.070 kg |
| Mounting | SourceCon™ interface card slot |
Product attributes
- Features: Streaming capabilities
- Suitable for: XMP44, MFA208, MFA216
Key features
- Warranty: 5 years
