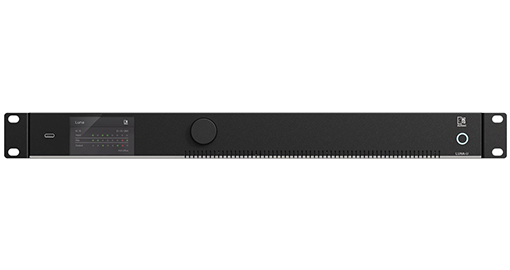

Audac LUNA-U Unified audio matrix processor
° Entrées/Sorties ligne : 12/8
° Entrées/sorties flexibles : 0
°Ports GPIO : 12 entrées/12 sorties
° Canaux audio Dante : Aucun, extensible à 32x32
° Annulation de l'écho acoustique : Aucune
° Ports d'interface de contrôle : Ethernet, RS485, RS232
Référence interne:
LUNA-U
Beschrijving:
This Audio matrix processor by Audac brings scaleable flexibility to the professional audio sphere. This device allows for up to 16 stereo or up to 32 mono flexible zones.
This device can be programmed in a number of ways, including with event handlers or GPIO. This allows users to create a solution that perfectly meets their needs. The device's flexible inputs and outputs allow for the connection of up to 12 inputs and 8 outputs, ensuring the optimal configuration of your installation.
This device is fully compatible with all Dante devices. Using the audio bridge function, it can translate between RS232 input and Dante output, or vice versa. The input can be incorporated into the matrix using Audac Touch to map zones.
Spécifications
| Dante | Oui |
| Couleur | Gris |
| RS232 | Oui |
| préamplificateur | Oui |
| Marque | Audac |
LUNA-U – Unified audio matrix processor
Highlights
- 12 Mic/line inputs and 8 balanced outputs
- 12 GPIO inputs and 12 outputs
- Expandable up to 32 x 32 Dante™/AES67 channels (with optional extension card)
- Event Handler (trigger & timed event scheduling)
- Auto-update (OTA) feature
- WaveTune™ & WavePreset™ audio processing
- Superior sound quality & low latency
- Compatible with all Dante™/AES67 paging/in & output devices (Optional)
- 16 Stereo or up to 32 mono flexible zones (all combinations possible)
Description
The LUNA-U is the next-generation audio matrix processor, offering highly flexible and scalable system solutions for audio distribution from medium-sized to the largest enterprise solutions. The internal structure provides unseen flexibility and a vast number of possibilities for an audio distribution system. The powerful DSPs (dual SHARC) combined with 32-bit ADC and DAC converters allow the most extensive signal processing with superb audio quality.
It includes 12 Mic/Line Inputs and 8 Line level outputs. Additionally, up to 32 Dante™/AES67 I/O Channels are available with a single ethernet port, allowing the integration of the system with any Dante™/AES67 compatible audio over IP I/O unit.
The flexible architecture allows fully flexible mapping of the signal path to any of the 32 mono or 16 stereo zones, while the powerful DSP resources provide unique processing features on all input channels, output channels, and zones. Dante-enabled paging microphones and smart wall panels make the complete system solution even more flexible and unique.
The internal Linux core provides the entire control of the LUNA series while also accommodating messaging, event scheduling, and implementation possibilities for future Linux-based functions. In addition to full network control, RS-232 and RS-485 interfaces are available for receiving third-party serial communication. For your system solution, you can easily incorporate the control of the entire system and compatible devices into your user interface by using our simplified design and system control platform, AUDAC Touch™.
Applications
- Corporate
- Sporting facilities
- Hotels
- Bars & Restaurants
- Education
- Government facilities
System specifications
| Property | Value |
|---|---|
| Inputs / Mic / Line inputs | 12 |
| Inputs / GPIO Inputs | 12 (in) |
| Inputs / USB Inputs (Type C) | Front (file transfer) |
| Inputs / USB Inputs (Type C) | Mass storage for messages |
| Inputs / USB Inputs (Type C) | Rear (file transfer) |
| Outputs / Line outputs | 8 |
| Outputs / GPIO Outputs | 12 (out) |
| Outputs / Fault | NO & NC relay contact |
| Network audio I/O | Optional Dante™/AES67 (Up to 32x32 Channels with SL-NAC8) |
| Zones | 32 Mono |
| Zones | 16 Stereo |
| Configurable settings / ALC (Automatic Gain control) | Yes |
| Configurable settings / AEC (Acoustic Echo cancellation) | No |
| Configurable settings / Integrated event scheduler | Yes |
| Configurable settings / Phantom power on inputs | +48 V DC |
| Configurable settings / WaveTune (input & zone) | 7-band EQ |
| Configurable settings / WavePreset (output) | 12xBiquad +LP+HP |
| Configurable settings / Delay (output) | 2000 ms |
| Configurable settings / Mono / stereo zones (configurable) | Yes |
| Configurable settings / Mixing | Yes |
| Configurable settings / Talkover | Yes |
| Configurable settings / Paging | Yes |
| Configurable settings / Priorities | 4 each zone |
| Configurable settings / Integrated generator | Sine or Pnoise or Wnoise |
| Configurable settings / Output Volume offset | Yes |
| Configurable settings / Others | Antiphase, bass & treble, input volume, … |
| DSP Processor | Dual core SHARC |
| DSP Processor | ARM Linux core |
| Configuration | Audac Touch™ |
| Controls & indicators / Front panel | 2.8” LCD Display with rotary encoder |
| Controls & indicators / Interface ports | RS-232 |
| Controls & indicators / Interface ports | RS-485 |
| Controls & indicators / Interface ports | Gigabit Ethernet (RJ45 primary) |
| Power / Supply | 100 ~ 240 V AC / 50 ~ 60 Hz |
| Power / Supply | 24 V DC |
Product Features
| Property | Value |
|---|---|
| Dimensions | 482 x 44 x 335 mm (W x H x D) |
| Mounting | 19” |
| Unit height | 1 HE |
| Construction | Steel |
| Colours | Black (RAL9005) |
Product attributes
- Brand: AUDAC
- Features: Integrated DSP, Optional Dante™/AES67 compatible, Mixing, TCP/IP Control, Voice file interface, Zone linking
Key features
- Certification: Dante™/AES67 Optional
- Additional Inputs: USB
- Additional Inputs: TCP/IP
- Warranty: 5 years
- Certification: Dante™ Domain Manager Ready
