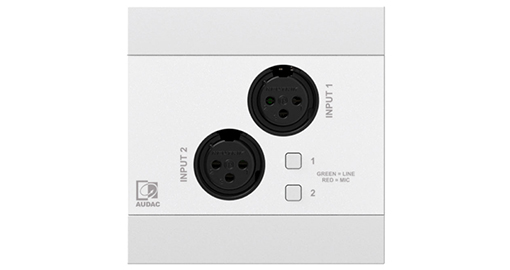

Panneau d'entrée réseau Audac - 2 x XLR + BT 4 CH - NWP220/W
° Mixage interne et traitement DSP
° Alimenté par PoE
° Configuration et contrôle faciles avec Audac Touch™
° Dante™/AES67 4 canaux
° Récepteur Bluetooth intégré
° Matériaux de haute qualité
° Disponible en noir ou blanc
Référence interne:
NWP220/W
Beschrijving:
The NWP220 is a Dante™/AES67 network input panel, featuring two XLR input connectors and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP220 is compatible with any PoE network-based installation.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Spécifications
| Couleur | Blanc |
| Dante | Oui |
| POE | Oui |
| RS232 | Non |
| Marque | Audac |
| Bluetooth | Oui |
NWP220/W – White version - EU-style standard
Highlights
- 2 x XLR inputs
- Integrated Bluetooth receiver (Version 4.2)
- 4 x 4 channels Dante™ & AES67
- All-in-one mixing & sound processing
- Ultra efficient cooling
- Superior sound quality & low latency
Description
The NWP220 is a Dante™/AES67 network input panel, featuring two XLR input connectors and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the XLR input connectors for powering condenser microphones. Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP220 is compatible with any PoE network-based installation.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with EU-style standard or 1-gang US standard in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Applications
- Corporate
- Sporting facilities
- Hotels
- Education
- Government facilities
- Bars & Restaurants
System specifications
| Property | Value |
|---|---|
| Inputs | 2 x XLR female (in) |
| Configurable settings | IP settings |
| Configurable settings | Device name |
| Configurable settings | Input range (Mic / Line) |
| Configurable settings | Gain |
| Configurable settings | Phantom power |
| Configurable settings | DSP (EQ) |
| Configurable settings | Mixing |
| Configuration | Audac Touch™ |
| Integrated DSP | Yes (EQ) |
| Automatic level control | Yes |
| Phantom power | +48 V DC |
| Connectors | RJ45 (network + PoE) |
| Connectors | 2 x XLR female (audio in) |
| Control | 1 button - Bluetooth discoverable |
| Indicators | 1 LED (RGB) - Bluetooth status |
| Power / Supply | PoE powered (IEEE 802.3af) |
Product Features
| Property | Value |
|---|---|
| Construction | ABS |
| Front finish | Elegant front panel with glass |
| Colours | Black (RAL9005) (NWP220/B) |
| Colours | White (RAL9003) (NWP220/W) |
| Compatible devices | Any Dante™/AES67 compatible audio device |
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) |
| Installation standard | Compatible with EU installation materials |
| Installation standard | 1-gang US standard (NWP220US) |
Product attributes
- Brand: AUDAC
- Features: Dante™/AES67 compatible
- Connector type: XLR
- Form factor: 80 x 80 mm
Key features
- Certification: Dante™/AES67
- Certification: PoE powered
- Additional Inputs: Bluetooth
- Properties: All-in-one mixing and sound processing
- Warranty: 5 years
- Certification: Dante™ Domain Manager Ready
