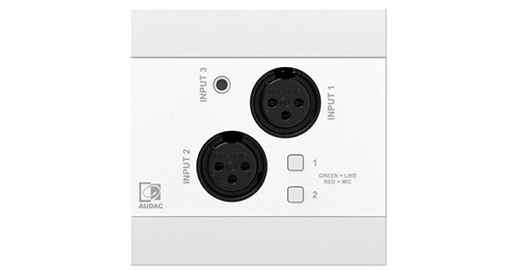

Panneau d'entrée réseau Audac - 2 x XLR + jack 3,5 mm + BT 4 CH - NWP320/W
° Mixage interne et traitement DSP
° Alimenté par PoE
° Configuration et contrôle faciles avec Audac Touch™
° Dante™/AES67 4 canaux
° Récepteur Bluetooth intégré
° Matériaux de haute qualité
° Disponible en noir ou blanc
Référence interne:
NWP320/W
Beschrijving:
The NWP320 is a Dante™/AES67 network input panel, featuring two XLR input connectors, a single 3.5 mm stereo jack stereo input connection, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP320 is compatible with any PoE network-based installation.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with standard EU-style in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Spécifications
| Couleur | Blanc |
| POE | Oui |
| Dante | Oui |
| RS232 | Non |
| Bluetooth | Oui |
| Marque | Audac |
NWP320/W – White version - EU-style standard
Highlights
- 2 x XLR inputs
- 3.5mm stereo jack input
- Integrated Bluetooth receiver (Version 4.2)
- 4 x 4 channels Dante™ & AES67
- All-in-one mixing & sound processing
- Ultra efficient cooling
- Superior sound quality & low latency
Description
The NWP320 is a Dante™/AES67 network input panel, featuring two XLR input connectors, a single 3.5 mm stereo jack stereo input connection, and an integrated Bluetooth receiver, which can be used to transmit audio signals in a Dante™ audio network.
Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™.
The IP-based communication makes it future-proof while also being backwards compatible with many existing products. Thanks to the limited PoE power consumption, NWP320 is compatible with any PoE network-based installation.
Besides the elegant design, the front panel is finished with high-quality fingerprint-resistant glass. The wall panels are compatible with EU-style standard or 1-gang US standard in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Applications
- Corporate
- Sporting facilities
- Hotels
- Education
- Government facilities
- Bars & Restaurants
System specifications
| Property | Value |
|---|---|
| Inputs | 2 x XLR female (in) |
| Inputs | 3.5 mm Jack (Stereo) |
| Configurable settings | IP settings |
| Configurable settings | Device name |
| Configurable settings | Input range (Mic / Line) |
| Configurable settings | Gain |
| Configurable settings | Phantom power |
| Configurable settings | DSP (EQ) |
| Configurable settings | Mixing |
| Configuration | Audac Touch™ |
| Integrated DSP | Yes (EQ) |
| Automatic level control | Yes |
| Phantom power | +48 V DC |
| Connectors | 3.5 mm Jack stereo (audio in) |
| Connectors | RJ45 (network + PoE) |
| Connectors | 2 x XLR female (audio in) |
| Control | 1 button - Bluetooth discoverable |
| Indicators | 1 LED (RGB) - Bluetooth status |
| Power / Supply | PoE powered (IEEE 802.3af) |
Product Features
| Property | Value |
|---|---|
| Construction | ABS |
| Front finish | Elegant front panel with glass |
| Colours | White (RAL9003) (NWP320/W) |
| Colours | Black (RAL9005) (NWP320/B) |
| Compatible devices | Any Dante™/AES67 compatible audio device |
| Dimensions | 80 x 80 mm (W x H) (Remote wall panel) |
| Installation standard | Compatible with EU installation materials |
| Installation standard | 1-gang US standard (NWP320US) |
Product attributes
- Brand: AUDAC
- Features: Dante™/AES67 compatible
- Connector type: 3.5 mm Jack , XLR
- Form factor: 80 x 80 mm
Key features
- Certification: Dante™/AES67
- Certification: PoE powered
- Additional Inputs: Bluetooth
- Properties: All-in-one mixing and sound processing
- Warranty: 5 years
- Certification: Dante™ Domain Manager Ready
