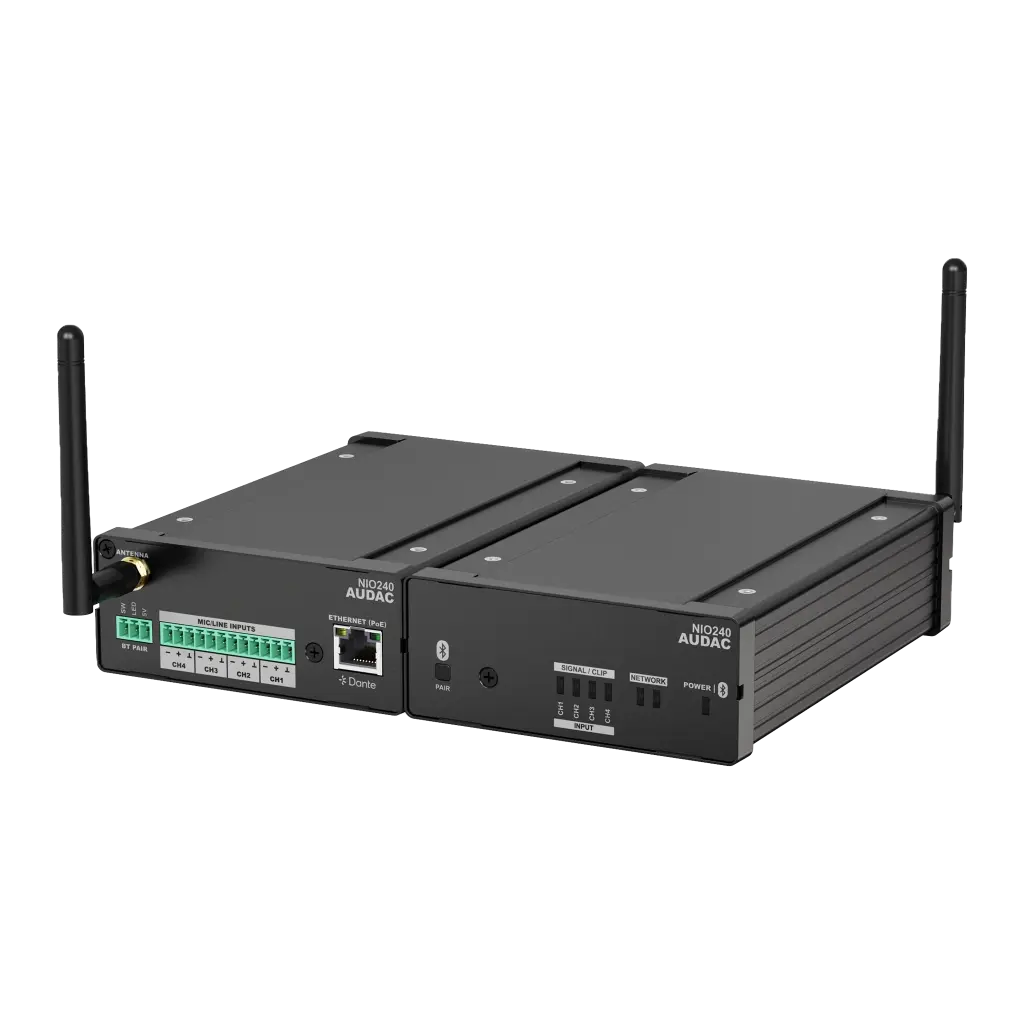

Audac NIO240 Netwerk I/O-mix breakout box Dante™/AES67 4x microfoon-/lijningangen

° PoE-aangedreven
° Fantoomvoeding pass-through
° Bluetooth-connectiviteit

€ 650,00 650.0 EUR € 650,00 Inclusief BTW

€ 537,19 537.1900826446281 EUR € 537,19 Exclusief BTW

€ 786,50 Inclusief BTW

Merk
- Audac
Aantal Kanalen
- 4

Deze combinatie bestaat niet.

Aan winkelmandje toevoegen

Interne referentie: NIO240
Beschrijving: NIO series are Dante™/AES67 network I/O mixing breakout boxes featuring terminal block input and output audio and Bluetooth connections. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the input connectors for powering condenser microphones.

Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™. The IP-based communication makes it future-proof while also being backwards compatible with many existing products.

The NIO series is compatible with any PoE network-based installation thanks to the limited PoE power consumption. The networked I/O expanders are compatible with MBS1xx setup box installation accessories which allow them to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or a 19” equipment rack.

Specificaties

Merk	Audac
Aantal Kanalen	4

NIO240 – Network I/O mixing breakout box Dante™/AES67 - 4 x Mic/Line inputs

Highlights

All-in-one mixing & sound processing
4 x 4 channels Dante™ & AES67
4 x Mic/Line inputs
Compatible with BAE100 extender kit for a higher gain and reception range
Integrated Bluetooth receiver (Version 4.2)
S-box™ modular multifunctional enclosure

Description

NIO series are Dante™/AES67 network I/O mixing breakout boxes featuring terminal block input and output audio and Bluetooth connections. The audio inputs can be switched between line-level and microphone-level audio signals and phantom power (+48 V DC) can be applied to the input connectors for powering condenser microphones.

Various further integrated DSP functions such as EQ, automatic gain control, and other device settings can be configured through the AUDAC Touch™. The IP-based communication makes it future-proof while also being backwards compatible with many existing products.

The NIO series is compatible with any PoE network-based installation thanks to the limited PoE power consumption. The networked I/O expanders are compatible with MBS1xx setup box installation accessories which allow them to be mounted under a desk, in a closet, on the wall, on top of a dropped ceiling or a 19” equipment rack.

Applications

Sporting facilities
Education
Hotels
Corporate
Bars & Restaurants
Retail

System specifications

Property	Value
Inputs / Type	Bluetooth receiver (Version 4.2)
Inputs / Type	Dante™/AES67 (4 channels)
Inputs / Type	RJ45 (With indicator LED's)
Inputs / Configurable Settings	Gain
Inputs / Configurable Settings	AGC
Inputs / Configurable Settings	Maximum Volume
Inputs / Configurable Settings	Noise Gate
Inputs / Configurable Settings	WaveTune™
Inputs / Impedance	10 kΩ Unbalanced
Inputs / Impedance	20 kΩ balanced
Outputs / Type	Dante™/AES67 (4 channels)
Outputs / Connector	RJ45
Outputs / Configurable Settings	10 Channels Mixer
Outputs / Configurable Settings	Gain
Outputs / Configurable Settings	Maximum Volume
Power / Consumption	3.54 W
Phantom power	+48 V DC
Inputs / Type	Mic/Line
Inputs / Connector	4 x 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Power / Supply	PoE powered (IEEE 802.3af)

Product Features

Property	Value
Dimensions	108 x 44 x 165 mm (W x H x D)
Weight	0.48 kg
Accessories / Included	Bluetooth antenna
Accessories / Optional	MBS1xx Optional Wall mounting brackets

Product attributes

Brand: AUDAC
Features: Bluetooth receiver V 4.2, Dante™/AES67 compatible
Form factor: S-Box (Audac)

Key features

Certification: Dante™/AES67
Certification: Dante™ Domain Manager Ready
Certification: PoE powered
Additional Inputs: Bluetooth
Properties: All-in-one mixing and sound processing
Warranty: 5 years
